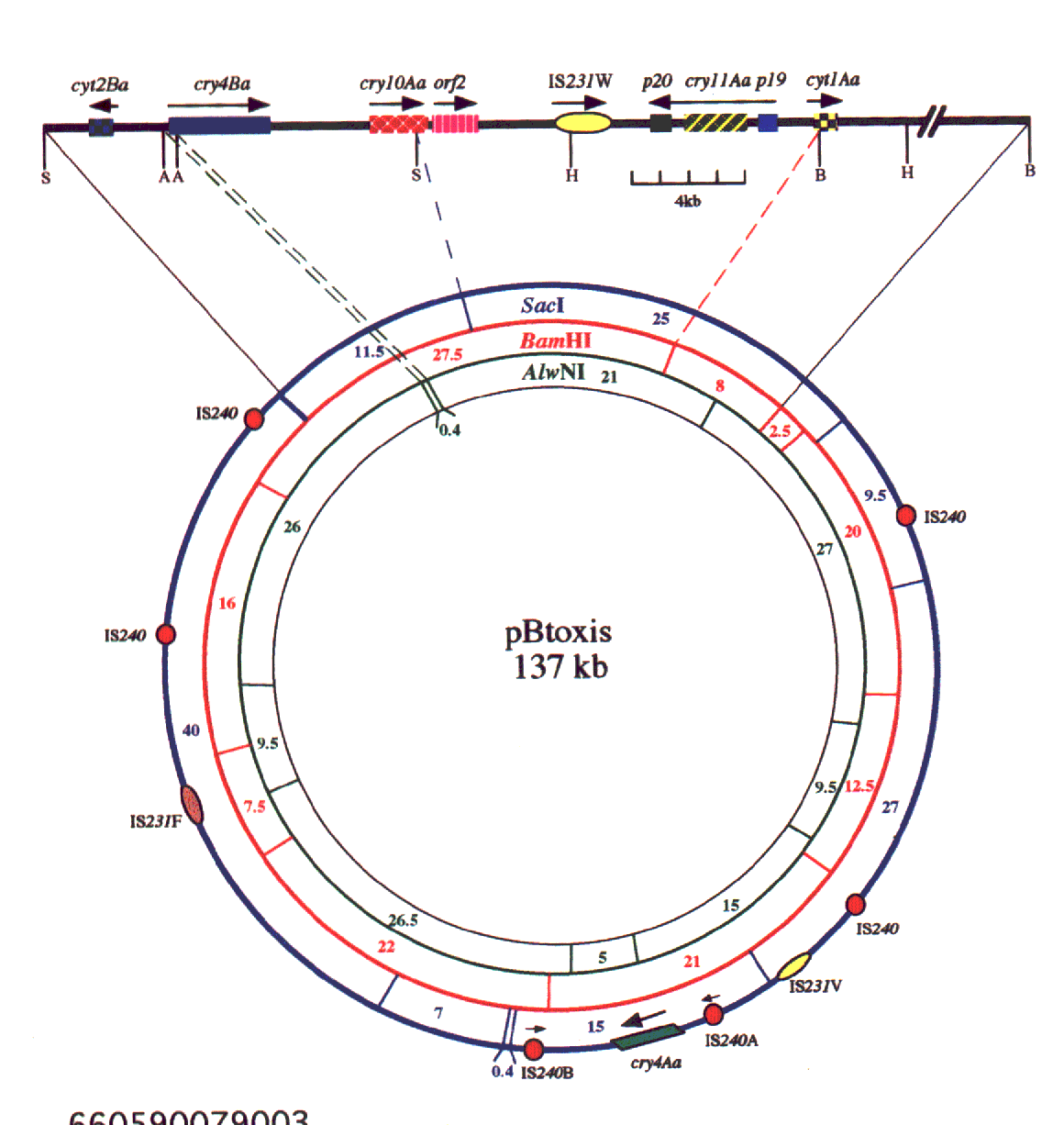

Partial restriction map of pBtoxis (the 137 kb Plasmid of B. thuringiensis susbp. israelensis), with positions of all known genes and Insertion Sequences
Ben-Dov, E., Nissan, G., Pelleg, N., Manasherob, R., Boussiba, S. & Zaritsky., A. (1999). Refined, circular restriction map of the Bacillus thuringiensis subsp. israelensis plasmid carrying the mosquito larvicidal genes. Plasmid 42: 186-191
Recognition Sites of Restriction Enzymes:
A, AlwNI; B, BamHI; H, HindIII; S, SacIOther Symbols:
IS, Insertion Sequence; orf, open reading
frame;
Arrows: signify the Direction of Transcription from the Respective Gene(s);
Boxes: signify Genes
Circles and Ovals: signify Insertion Sequences
Numbers: represent the Sizes of
Respective Fragments
Genes: (new nomenclature): cry4Aa; cry4Ba; cry10Aa; cry11Aa; cyt1Aa; cyt2Ba; p19; p20; orf2
